Distributed Encoding Box

DE11

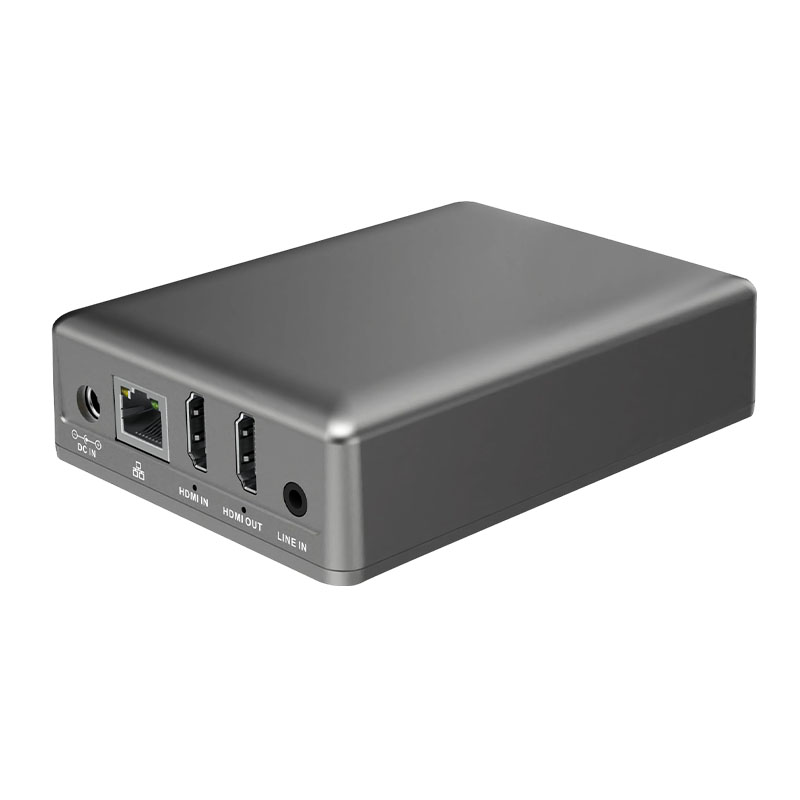

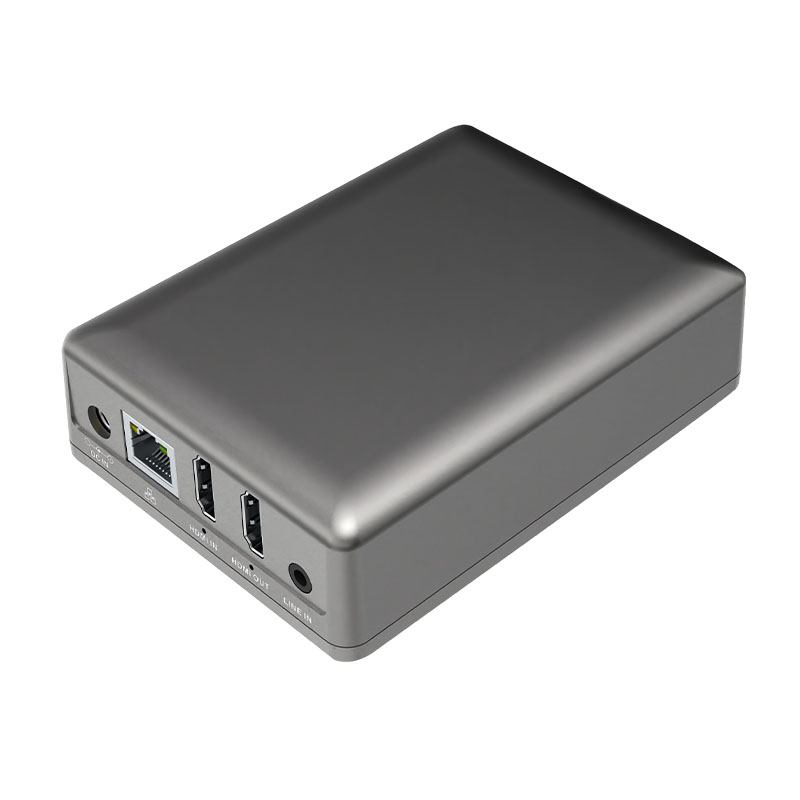

A device that integrates digital audio and video acquisition, audio and video encoding, audio and video processing and other functions. The device uses an industrial-grade high-performance, low-power ARM architecture processor and is designed and developed based on an open-source, stable embedded Linux operating system to ensure that the system is reliable and stable. This product is based on intelligent and convenient operation and user-centricity. It has the advantages of easy installation, simple operation, and easy maintenance. In the face of various application scenarios, this device can meet audio and video encoding related needs and provide users with an integrated solution.

Consult

Features Technical Indicators Overall Dimension

1. Pure embedded design
① The system adopts pure embedded system, ARM processor solution, high stability, low power consumption
② Support 7*24 hours work
2. Diversified video access methods
① Support 1 HDMI method to access the screen (HDMI interface can support up to 1920*1080 screen access, backward compatible with conventional resolution, and support HDMI IN loop out)
3. Audio access
① Support linear audio input
② Support HDMI AUDIO IN audio input
4. Diversified video output methods
① Support HDMI OUT video output
② Support RTSP format video streaming
③ Support RTMP format video streaming
5. Support screen change notification
① Support HDMI screen detection algorithm, no need to install any program on the multimedia computer to detect screen change actions such as moving the mouse, operating the courseware page turning, etc.

System Unit	Operating system	Linux
	Supported protocols	HTTP、UDP、RTMP、RTSP、WEBSOCKET、DHCP

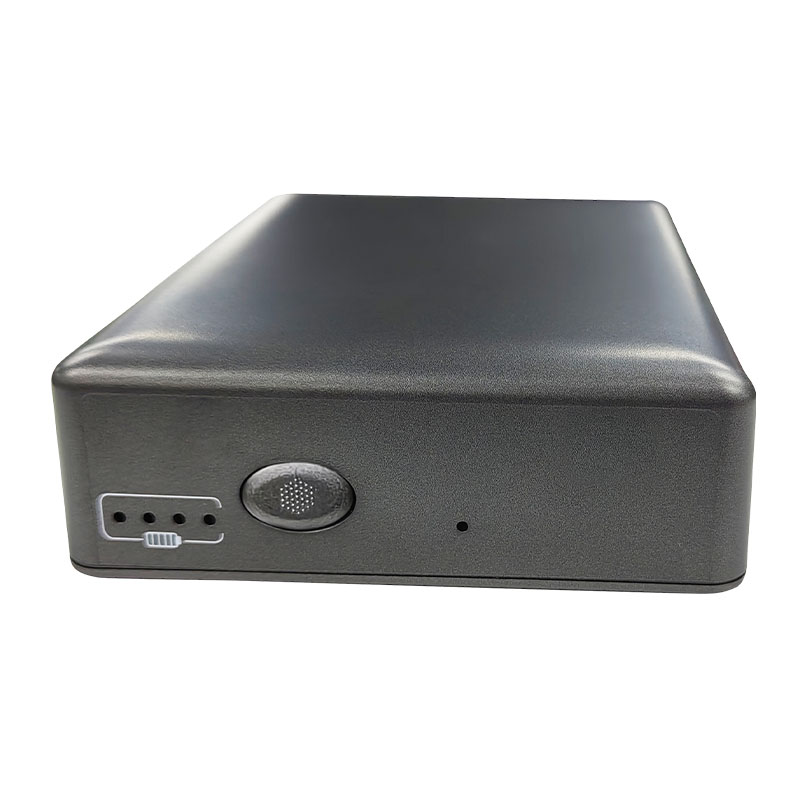

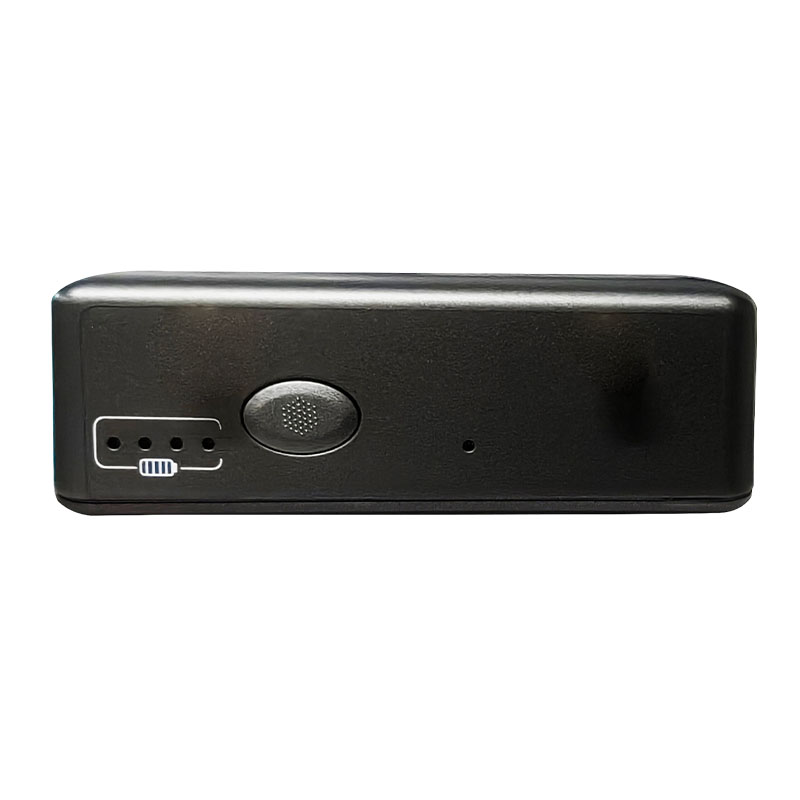

	Front physical buttons	Power switch
	Front indicator lights	Power-on status indicator
	Rear indicator lights	HDMI IN and HDMI OUT signal status indicator
Video Unit	Video encoding standard	H.264, H.265
	Input resolution	1920×1080p@60, 1920×1080p@50, 1920×1080p@30, 1600×1200P60, 1680×1050p@60, 1600×900P60, 1440×900P60, 1280×1024p@60, 1280×960p@60, 1280×800p@60, 1280×720p@60, 720×480p@60, 640×480p@60
	Output resolution	1920*1080
Audio Unit	Audio compression standard	AAC
Audio Unit	Audio acquisition encoding	48KHZ

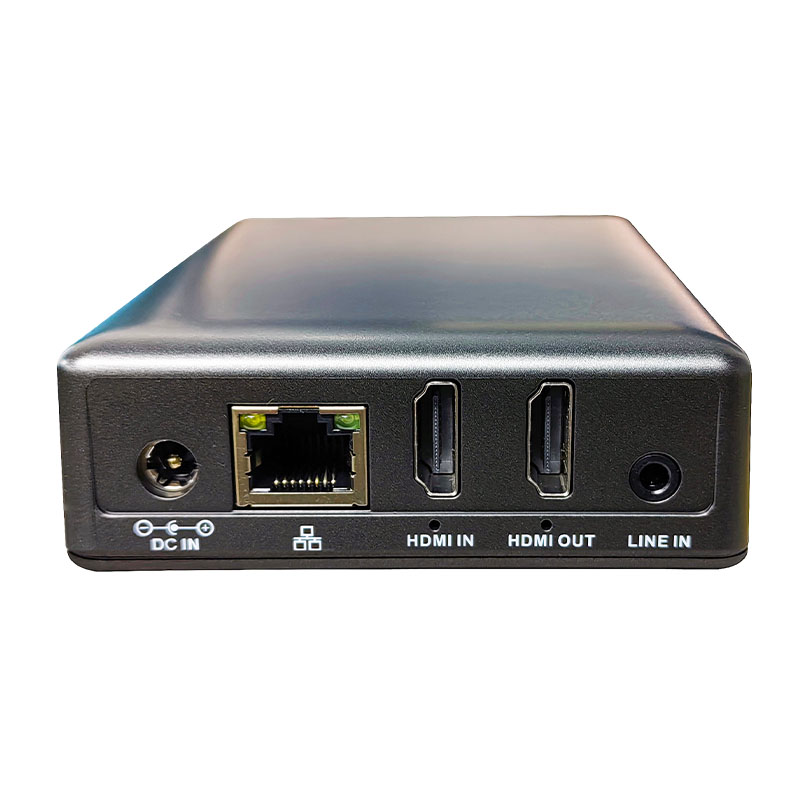

Functional Interface	Video input	1 HDMI
	Video output	1 HDMI
	Audio input	1 HDMI IN, 1 3.5mm LINE IN
	Network interface	1 RJ45: 10/100 adaptive
	Power interface	Inner diameter 2.5mm, outer diameter 5mm DC power socket
Power supply unit	Input power	DC 12V/1A
Power supply unit	Maximum power consumption	<5W
Operating Environment	Storage temperature	-10℃~+50℃
	Storage humidity	90%RH
	Operating temperature	0℃~50℃
	Operating humidity	70%RH
Physical properties	Body color	Black
	Body material	Plastic

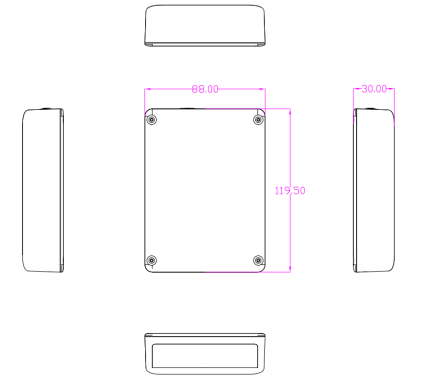

	Overall size	119.5mm(W) x 88mm(D) x30mm(H)
	Packing method	Carton + pearl cotton
	Packing size	230mm200mm105mm
	Net weight	About 220g
	Gross weight	About 720g
Accessories:	power adapter, warranty card, packing list;
